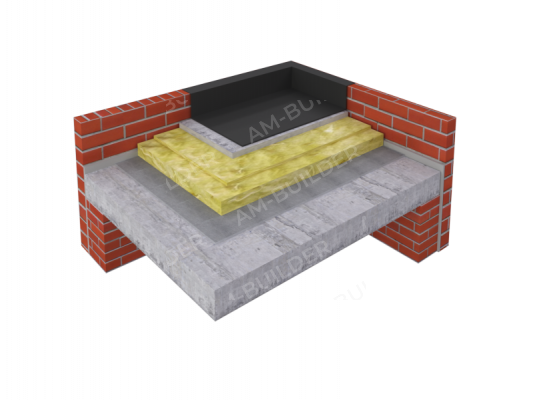

Flat Accessible Roof

1.453 h
Price for 1 m2
62.33 $
Complexity
High

Advantages

1. Utility and usability
2. Spectacular appearance
3. Environment resistance including superior windproof properties

Disadvantages

1. Need to consider accessibility while designing a building
2. Complicated building
3. High price

Estimate for work

Materials

Water
0.024 m3
Heat-fused tar paper
2.445 m2
Mineral wool slab (thickness according to the installed partition)
1.03 m2
PE film
0.4 m2
Bitumen-polymer prime coating
0.4 kg
Levelling mortar
0.032 m3
Sloping mortar
0.032 m3
Propane-butane mixture
0.632 kg

Workers

Crane operator
0.003 h
Electrician-Installer
i i
1.45 h

Instruments

Concrete vibrator
p.
Truck-mounted crane
p.
Mobile compressor
p.
Hoist
p.
Utility knife
p.
Tape measure
p.
Gas burner
p.
Material calculation
Calculate materials, workers, and tools for the quadrature you need
m2
Sum: 62.33 $
Back call
This field is required
This field is required
This field is required
Sequence of work
1.
Installation of a concrete slope layer
2.
Insulation installation
3.
Laying cement-sand screed
4.
Installation of multi-layer bitumen waterproofing
5.
Installation of foam wedges against insulation breakage
