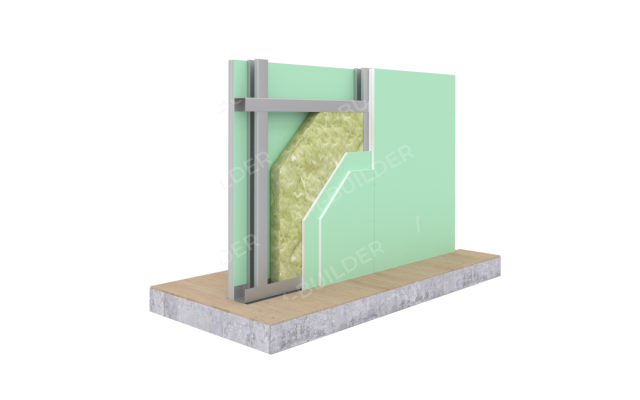

Reinforced partition wall

2.32 h
Price for 1 m2
75.67 $
Complexity
Medium

Advantages

1. The ability to quickly create a lightweight structure of any shape
2. Lightening the weight of the building
3. Additional surface fire protection
4. Suitable for any type of finish

Disadvantages

1. Low resistance to moisture

Everything for repair and construction in one place — AM Builder.
Here can be your advertising!

Estimate for work

Materials

1 m2
12.5 mm plasterboard sheets
4.2 m2
0.6 mm CW 50/75/100 profile bar
1.8 l.m.
0.6 mm UW 50/75/100 profile bar
0.8 l.m.
3.5x25 self-tapping screws for metal
i i
3 p.
6x60 quick-install dowel with screw
i i
1.5 p.
3.5x25 mm plasterboard self-tapping screws
35 p.
Cement putty
0.25 kg
50/70/95 mm soundproofing tape
1.1 l.m.
Reinforcing tape
2.2 l.m.
Mineral wool slab (thickness according to the installed partition)
1 m2

Workers

1 m2
Drywall board installer
2.32 m2

Instruments

1 m2
Electric drill
i i
p.
Electric screwdriver
i i
p.
Hammer drill
i i
p.
SDS plus concrete drill bits
i i
p.
7-8.6 mm drill bits for metal
i i
p.
Waterproof sandpaper
i i
m2
Material calculation
Calculate materials, workers, and tools for the quadrature you need
m2
Back call
This field is required
This field is required
This field is required
Sequence of work
1.
2.
3.
4.
